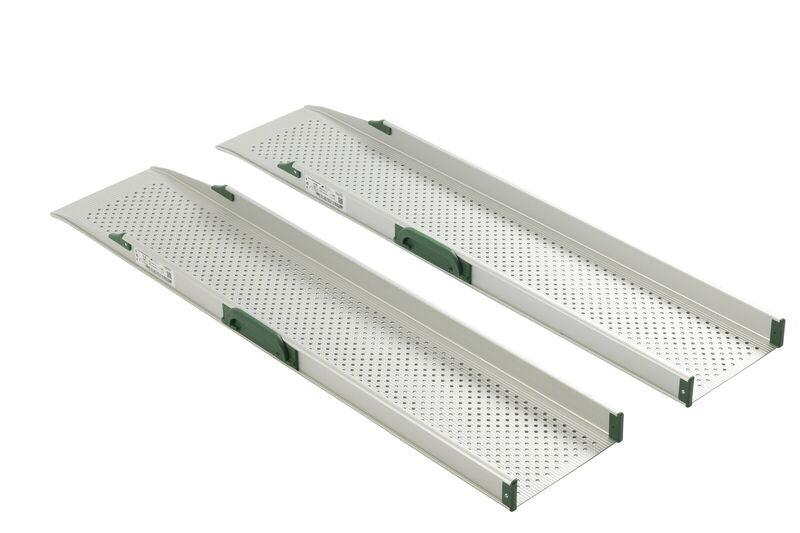

NEW Plain Length Channel Ramps, 1m Length

Included / NEW Plain Length Channel Ramps 1m Length - Product code: RAMP210G

A pair of newly designed Stepless™ Plain Length Channel Ramps.

-Solid ramps made from lightweight aluminium

- Each Channel Ramp as an integral handle

-Integrated non-skid surface

Other features include:-

• End caps that prevent the ramp from slipping during use, and serve as shock absorbers during transport
• Softly rounded, folding handles that feel comfortable when lifting and carrying the ramp
• High safety – can support heavy loads
• An integrated non-skid surface that is extremely hard-wearing and provides sure footing in almost all conditions
• Maintenance-free – anodised aluminium profiles for increased stability and strength
• Holes for drainage

Overall length approximately 1m (1160mm).

Supplied as a Pair.

Technical Specifications:

Length 1160mm

Inner width of channel 210mm

Outer width 235mm

Maximum Load 400kg per pair.

Weight of each Channel Ramp 3.1kg

Manufacturer Reference 30006-100.

We always recommend using the longest ramp possible – the longer the ramp, the gentler the gradient and the easier the ramp is to negotiate. This 1m length option is only suitable for small height rises- see gradient guidance below. Different ramp options will need to be considered for a higher step, or more than one step.

Choosing a ramp length:

Generally speaking, the manufacturer recommends the following ramp lengths in relation to the stated gradients:

User-operated manual wheelchair: maximum gradient 1:7. (for every mm of step height, you should allow 7mm of ramp length. For example, a 150mm height would require 1050mm of ramp length)

Helper-assisted manual wheelchair and electric wheelchair: maximum gradient 1:5. (for every mm of height, you should allow 5mm of ramp length. For example, a 200mm height would require 1000mm of ramp length).
