NEW 3 Part Telescopic Channel Ramps, 3m from Stepless™

NEW 3 Part Telescopic Channel Ramps 3m* from Stepless™: RAMP330G - Product code: RAMP330G-2

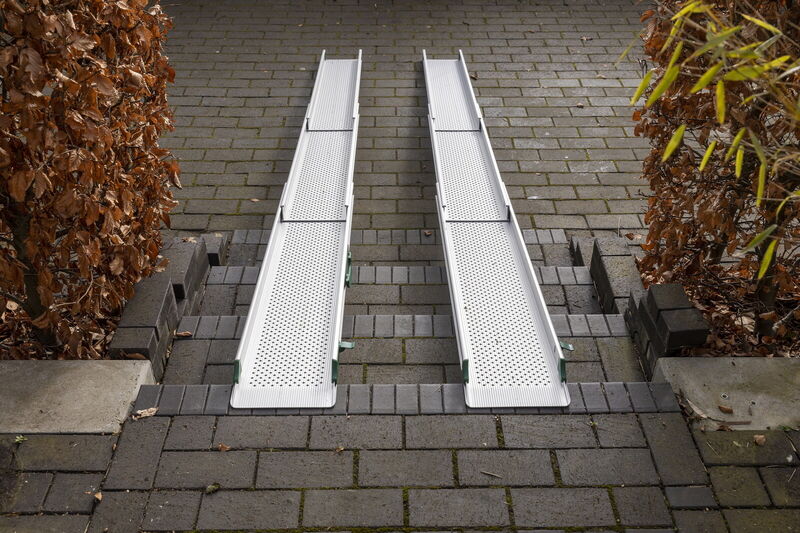

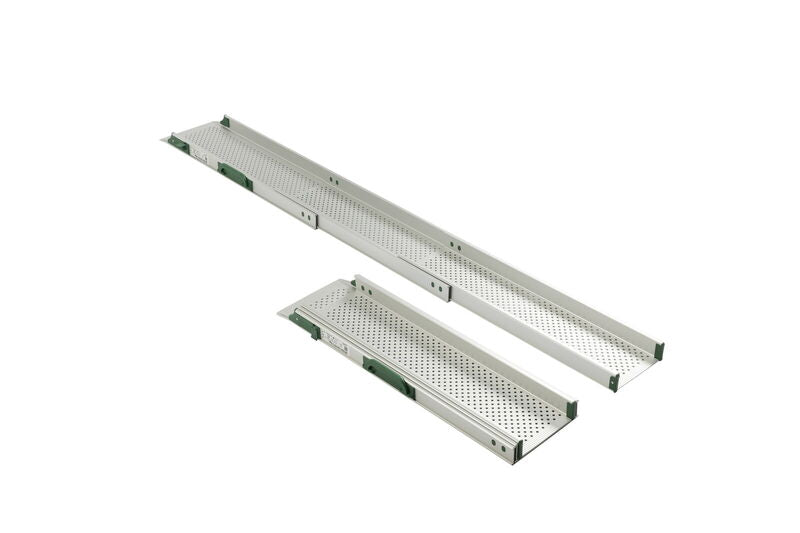

A pair of 3m* Telescopic Channel Ramps, from Stepless™, with 3 telescopic sections for easier transport/storage.

These ramps have an adjustable length, making them easy to store and to transport – and just as simple to extend and secure in position when they are needed

*The product name describes the approximate overall length of the channel ramp when fully open, including the top section of the ramp designed to rest on the step. For the precise maximum and minimum length in use please refer to the Technical Specifications.

Stepless telescopic ramps feature the following benefits:

• End caps that prevent the ramp from slipping during use, and serve as shock absorbers during transport
• Softly rounded, folding handles that feel comfortable when lifting and carrying the ramp
• High safety – can support heavy loads
• An integrated non-skid surface that is extremely hard-wearing and provides sure footing in almost all conditions
• Holes for drainage
• Maintenance-free – anodised aluminium profiles for increased stability and strength
• Attractive, functional design
• Easy to shut closed for storage and transport


Technical Specifications:

Length Open 2820mm, closed/ folded 1160mm

Inner Width 170mm

Outer width 235mm

Maximum Load 250kg per pair

Weight of each channel ramp- 8.2kg

Manufacturer Product Reference 30016-300-3.

SUPPLIED AS A PAIR.

We always recommend using the longest ramp possible – the longer the ramp, the gentler the gradient and the easier the ramp is to negotiate; see gradient guidance below to see if a 3m ramp length is suitable for the overall height you are negotiating. Different ramp options may need to be considered.

Choosing a ramp length:

Generally speaking, the manufacturer recommends the following ramp lengths in relation to the stated gradients:

User-operated manual wheelchair: maximum gradient 1:7. (for every mm of step height, you should allow 7mm of ramp length. For example, a 400mm height would require 2800mm of ramp length)

Helper-assisted manual wheelchair and electric wheelchair: maximum gradient 1:5. (for every mm of height, you should allow 5mm of ramp length. For example, a 600mm height would require 3000mm of ramp length).
